Guangzhou UC Instruments., Co. Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | YOUCii |
| Model Number : | U87248C |
| Certification : | CU,IOS |
| Price : | negotiate a price |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 20 pcs+per month |
| Delivery Time : | 20 work days |

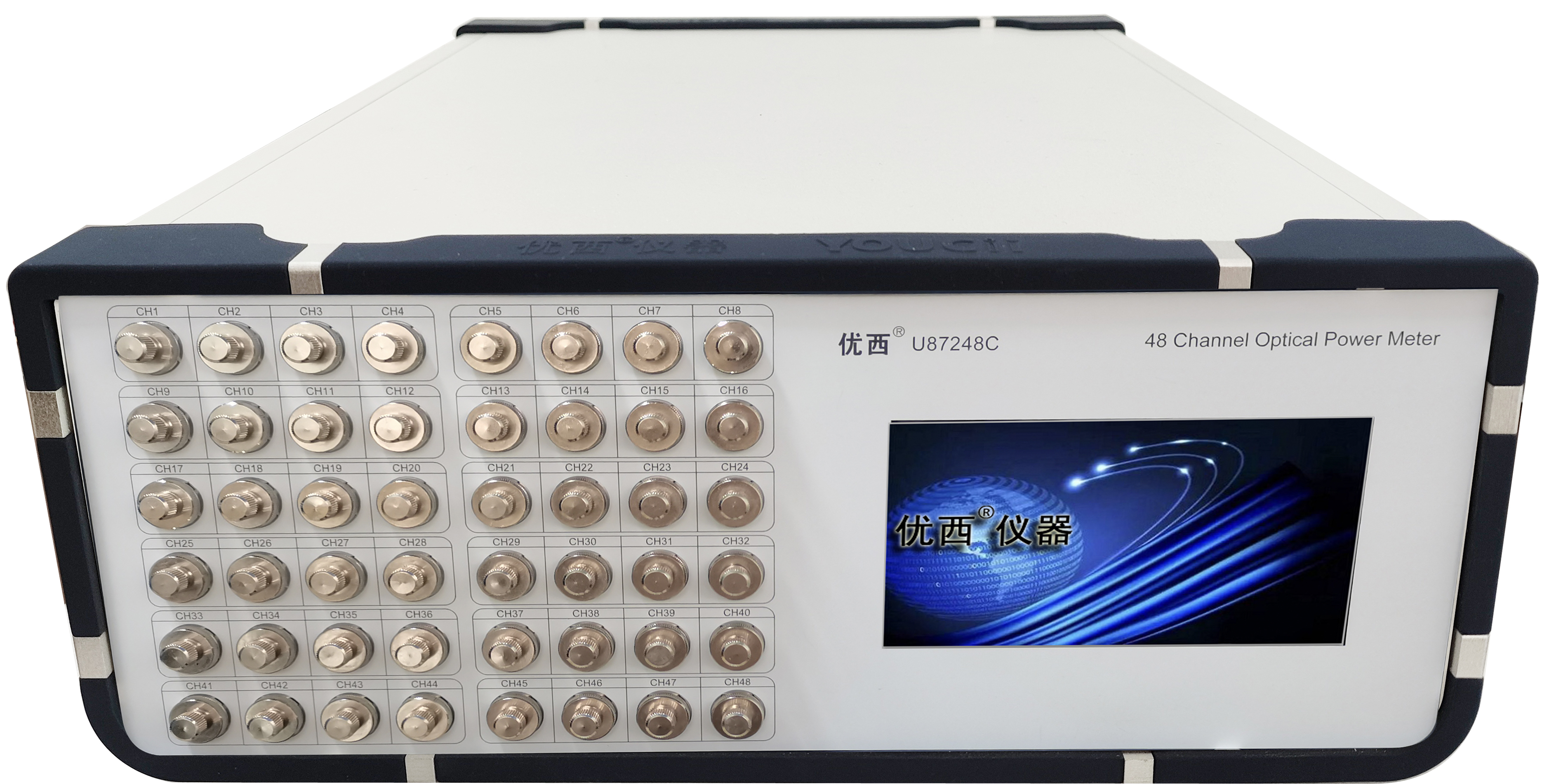

48-Channel Fast Scanning Optical Power Meter With Display
U87248C channel optical power meter is mainly used for high precision WDM components, optical waveguide grating array AWG components, planar optical waveguide PLC components, optical amplifiers and other general optical fiber measurement and application, superior performance, economic and practical.
The U87248C channel optical power meter measuring system has the characteristics of high performance, small size, fast start-up and affordable price. Guangzhou Youxi can provide low power, high power, in addition to 2 channel and 8 channel optical power meters for choice, now can provide up to 48 channel and 64 channel combined test systems.
should
Active optical module/Optical Device Test:
In the multi-channel error measurement of optical transceiver module, parallel data measurement is realized. In the sensitivity measurement of optical receiving module, it provides parallel, fast and accurate optical power input; 200ms optical power control stability time, greatly improve the test efficiency.
Optical communication network integration test:
Test network transmission performance and network management functions in optical communication network integration.
| Model # | U87248C | ||
| Sensor Element | InGaAs | ||
| Wavelength Range | 850 ~ 1700 nm | ||
| Calibration Wavelength | 850 / 980 / 1310 / 1490 / 1510~1625 nm | ||
| Power Range | +5 ~ -75dBm | ||
| Sampling period | 10 us (100KHz) | ||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
| Uncertainty (accuracy) | ± 4% (1200 nm ~ 1610 nm) | ||
| Relative Uncertainty (accuracy) | ＜ 0.02 dB Typical | ||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0 ~ -60dBm) | ||
| Return Loss | ＞40 dB | ||
| Communication Interface | RS232, USB,RJ45 Control by PC | ||
| Operation Temperature | 0 ～ +40℃ | ||
| Storage Temperature | -30 ～ +80℃ | ||
| Recalibration Period | 2 years | ||
| Dimensions | 235 mm W, 55mm H, 320 mm D | ||
| Weight | 3.0 kg | ||
|
|
