Broadband Light Source And Spectrometer Share Scanning System

System overview:

This system is a set of integrated single-point automatic test system developed for 2xn and 1xn optical switches. The system integrates single-point light source, optical switch, CP9810A and other test equipment. Combined with the process prompt and result judgment of the optical switch test software, the system is integrated, streamlined and anti-error, and the overall test efficiency of the product is effectively improved. The space of station equipment is compressed, the cleanliness of the station is improved, and the time cost of staff training is reduced.

Highlight introduction:

1. The test efficiency is improved, the product only needs to be connected once, reducing the number of wiring;

2. Reduce testing costs, reduce staff training time, and reduce equipment and personnel input;

3. Convenient site management, integrated equipment, less space, less jumper;

4. The system is error-proof, employees work according to prompts, operation items are less, and the system automatically calculates;

5. Comprehensive test parameters, including IL, RL, PDL, ISO and other optical switch products;

6. Test results grading, according to the actual production needs to define multiple product levels;

7. Test data traceability, data retention in the database and local, long-term traceability of records;

8. Combined with FIS system, paperless can be realized in the true sense.

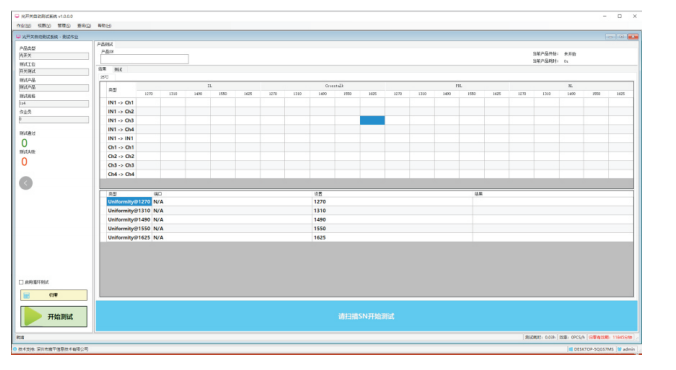

Test interface:

"To do import substitution, to create national brand" is the journey that Uc Instruments is brave to climb and the goal of continuous progress.

Guangzhou UC Instruments., Co. Ltd. was founded in March 2009 and has been recognized as a high-tech enterprise in Guangdong Province.

Guangzhou UC Instruments., Co. Ltd. is willing to join hands with chip manufacturers, device manufacturers, equipment manufacturers, communication operators and data centers in the optical communication industry, as well as teaching and research units in the industry, to create a brilliant industry. To provide industry users with "UC" independent brand measurement instrument products and services, and automated test system customization services.

We warmly invite customers to choose our products and services. We will try our best to do a good job in the spirit of craftsmanship in our products, with enthusiasm to do a good job in our services, and strive to become the majority of users in the field of product measurement and testing strong backing.

The full range of Youxi instrument products are:

8 series passive measuring equipment: light source series, optical power meter series, optical attenuator series, plug back loss meter series and optical polarization generator and optical switch series, etc.

9 series of active measuring equipment: BER series, optical oscilloscope series, clock recovery instrument series, LIV measuring system and 10G/100G/400G optical module test and evaluation board series.
