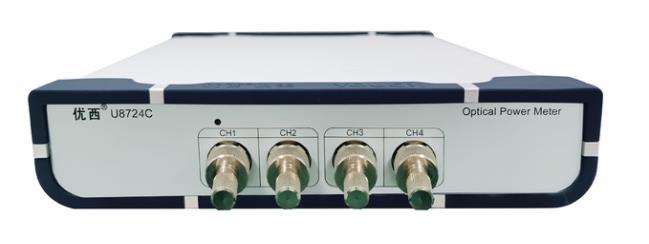

Superior Performance Of 4-Channel Fast Sampling Optical Power Meter
U8724 4-channel optical power meter is mainly used for high
precision WDM components, optical waveguide grating array AWG
components, planar optical waveguide PLC components, optical
amplifiers and other general optical fiber measurement and
application, superior performance, economic and practical.
The U8724 optical power meter measuring system has the
characteristics of high performance, small size, fast start-up and
affordable price. Euwest Instruments offers a choice of low-power,
high-power, 4-channel and 8-channel optical power meters, as well
as combined test systems up to 64 channels.
The 4-channel optical power meter has the following advantages:
High-precision measurement: The optical power of each channel can
be measured quickly and accurately, providing high-precision
measurement results.
Multi-channel measurement: The optical power of multiple channels
can be measured at the same time, which is suitable for application
scenarios that require multi-channel measurement.
Real-time monitoring: The optical power changes of each channel can
be monitored in real time, which is easy to find and solve problems
in time.
Easy to use: with a friendly user interface and easy to use
operation mode, easy for users to operate and data transfer.
High reliability: It has high reliability and stability, and can
ensure long-term stable use.
| Model | U8724 | U8724C | |
| Sensor Element | InGaAs | ||
| Wavelength Range | 850 ~ 1700 nm | ||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm | 1510~1625 nm Continuous calibration | |
| Power Range | +25~-55dBm | +5~-75dBm | |
| Sampling period | 100us (10KHz) | 10 us (100KHz) | |
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
| Uncertainty (accuracy) | ± 4% (1200 nm ~ 1610 nm) | ||
| Relative Uncertainty (accuracy) | ＜ 0.02 dB Typical | ||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm) | ||
| Return Loss | ＞40 dB | ||
| Communication Interface | RS232, USB,Control by PC | ||
| Operation Temperature | 0 ～ +40℃ | ||
| Storage Temperature | -30 ～ +80℃ | ||
| Recalibration Period | 2 years | ||
| Dimensions | 235 mm W, 55mm H, 320 mm D | ||
| Weight | 3.0 kg | ||
|
|
