    Handheld Lan WDM Four - Wavelength Light Source And Optical Power Meter

    Ask Lasest Price
    Brand Name : YOUCII
    Model Number : U8654
    Certification : CU,IOS
    Price : negotiate a price
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,T/T
    Supply Ability : 20 pcs+per month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

    Handheld Lan WDM Four - Wavelength Light Source And Optical Power Meter

    Handheld LanWDM Four-Wavelength Light Source And Optical Power Meter


    Product Overview:

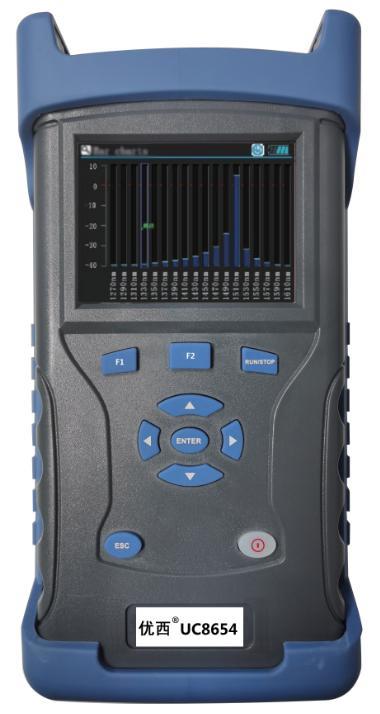

    U8654 is a hand-held device combining LanWDM four-wavelength light source and corresponding four-wavelength optical power meter, with built-in optical attenuation device to realize adjustable output power of light source.

    With highly integrated Mux and DeMux components and high stability driver circuit and high precision optical detection technology, it is specially designed and developed for optical network installation, detection and maintenance, as well as optical communication components production line inspection.


    LAN WDM four-wavelength light source and optical power meter can be used together to measure wavelength and power. The optical power meter is used to measure the power of the optical signal, while the LAN WDM four-wavelength light source can provide four different wavelengths of optical signals. By using these tools, the performance of optical communication systems can be evaluated and optimized.


    Specifications:

    Product modelU8654
    Working modelight sourceoptical power meter
    Output wavelength/Probe wavelength1271, 1291, 1311, 1331 nm
    device typeDFBInGaAs
    Power adjustable/detection range+5 ~ -5 dBm+5 ~ -55 dBm
    Power stability/detection accuracyShort time 15 minutes ≤±0.01 dB5%
    • Fiber Type
    single mode
    • Board to Board
    FC/APCFC / LC / SC optional
    Light output/detection formFour in one outputOne minute and four probes
    Display resolution (dB)0.01
    communication interfaceMini USB
    power supplyLithium battery, AC adapter
    Battery duration (h)2
    Automatic shutdown time (min)5
    Operating temperature (℃)-10~+40
    Operating temperature (℃)-25~+70
    Overall size (mm)220×100×75
    Weight (excluding batteries)1Kg
