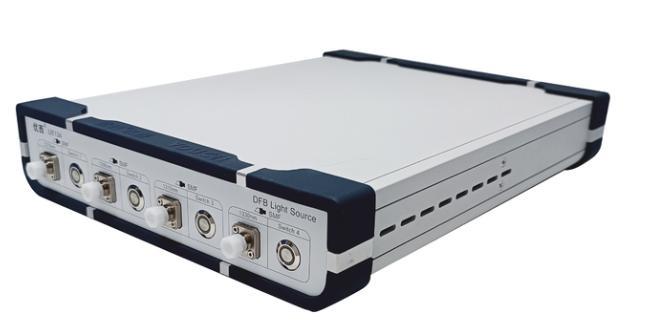

Wavelength Customizable Multi-Channel Point Light Source DFB Laser Light Source

outline

U813n multi-channel laser light source can be used in WDM CWDM device, high precision WDM DWDM device, AWG device of optical waveguide grating array, planar optical waveguide PLC device, optical amplifier EDFA and other general optical fiber measurement and application. Especially suitable for the mass production of couplers and planar optical waveguide PLC components.

Characteristic point

The U813n multi-channel laser light source has the characteristics of high output stability, small size and fast start-up. The light source device can provide multiple channels of fixed wavelength light source output signals. Guangzhou Youxi can also according to customer needs, customized 850, 980, 1250,1270,... 1610,1625 nm, etc. Any two or four or more wavelengths of the combination of light source devices.

Specification

Note: Single-channel model: U8121/U8131, dual-channel model: U8122/U8132, four-channel model: U8124/U8134, etc

Power requirements

Instruments comply with overvoltage Class II regulations. The working voltage is 100 ~ 240V AC voltage, the frequency range is 48 ~ 66Hz, the working voltage is 115V, the maximum current consumption is 230mA; When the working voltage is 230V, the maximum current consumption is 120mA.

In accordance with international safety standards, the instrument is equipped with a 3-core power cord that meets the national standard. Connect the power cable only to a power socket with ground protection.

Light source output interface

Light source connector interface for laser signal output. Select an FC/PC or FC/APC connector and an SMF or MMF fiber according to the fiber type label indicated on the instrument panel.

The wavelength label displays the wavelength value of the corresponding channel.

"To do import substitution, to create national brand" is the journey that Uc Instruments is brave to climb and the goal of continuous progress.

Guangzhou UC Instruments., Co. Ltd. was founded in March 2009 and has been recognized as a high-tech enterprise in Guangdong Province.

Guangzhou UC Instruments., Co. Ltd. is willing to join hands with chip manufacturers, device manufacturers, equipment manufacturers, communication operators and data centers in the optical communication industry, as well as teaching and research units in the industry, to create a brilliant industry. To provide industry users with "UC" independent brand measurement instrument products and services, and automated test system customization services.

We warmly invite customers to choose our products and services. We will try our best to do a good job in the spirit of craftsmanship in our products, with enthusiasm to do a good job in our services, and strive to become the majority of users in the field of product measurement and testing strong backing.

The full range of Youxi instrument products are:

8 series passive measuring equipment: light source series, optical power meter series, optical attenuator series, plug back loss meter series and optical polarization generator and optical switch series, etc.

9 series of active measuring equipment: BER series, optical oscilloscope series, clock recovery instrument series, LIV measuring system and 10G/100G/400G optical module test and evaluation board series.
