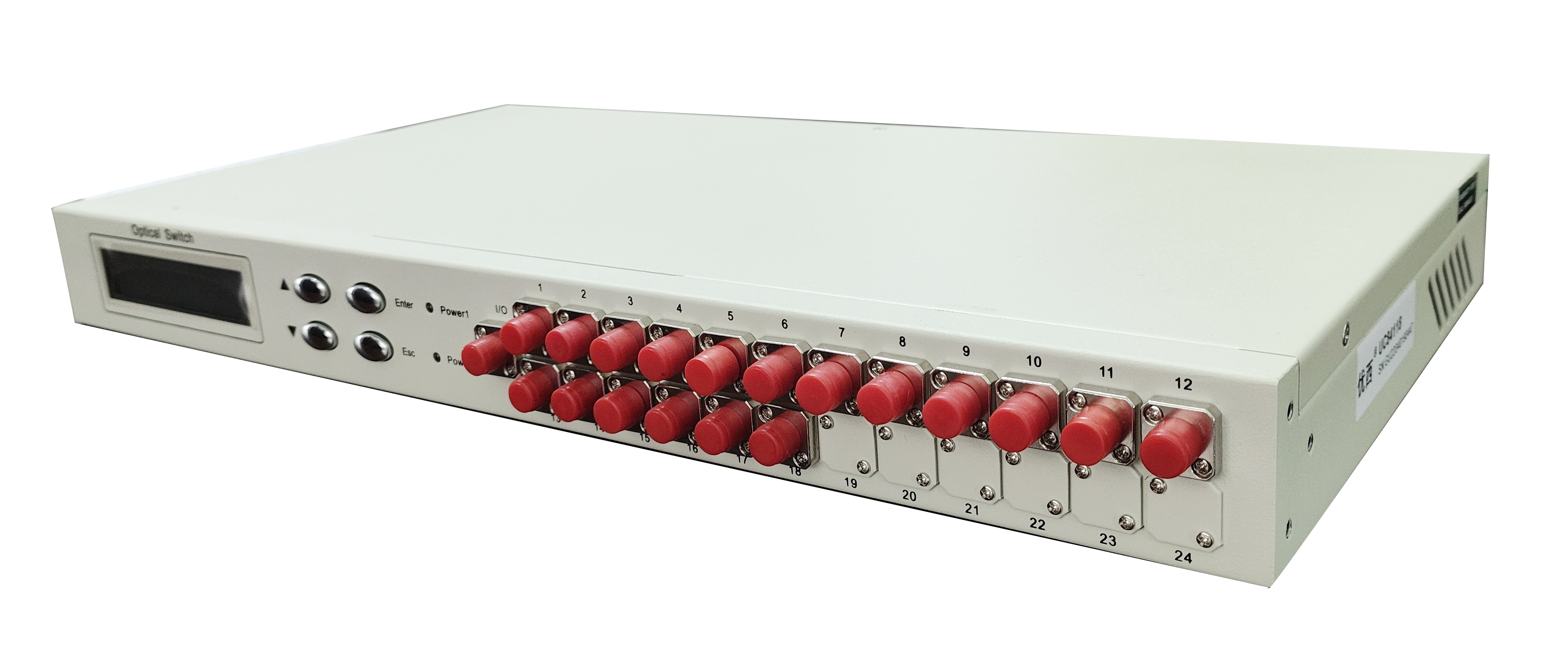

The 18-Channel Rack-Mounted Optical Switch Has Low Loss
U84118 rack-mounted optical switch is a kind of high-performance optical switch equipment, which adopts rack-mounted design and has the characteristics of high integration and modularity, which makes the installation and maintenance more convenient.
Excellent performance parameters such as low insertion loss, high isolation and fast response time ensure the stability and efficiency of the optical signal during transmission. It is suitable for large-scale optical fiber networks and can meet the needs of high-speed and large-capacity optical signal transmission.
The U84118 rack-mounted optical switch has a wide range of applications, including optical fiber communication, optical network, optical testing and optical sensing. It can be used to construct complex fiber network topologies and realize flexible scheduling and switching of optical signals.
specification
| Type number | U84118 |
| Operating wavelength | 1260 ～ 1650nm |
| Test wavelength | 1310nm / 1550 nm |
| Insertion loss | ≤1.2 dB |
| repeatability | ≤±0.05 dB |
| Return loss | ≥57dB |
| crosstalk | ≥63dB |
| Wavelength dependent loss | ≤0.25 |
| Polarization dependent loss | ≤0.02 |
| Switching time | ≤ 10ms(Adjacent sequential switching) |
| Fiber type | SM(9/125um) |
| Connector form | FC/APC |
| Monitoring port | RJ45,RS-232 |
| Working power supply | AC: 85 ～ 264(50/60Hz) |
| Operating temperature | -5 ～ + 60℃ |
| Storage temperature | -40 ～ + 80°C |
| Chassis type | 19 inch standard 1U rack(483×220×44mm) |
|
|
