2/4/6/8/12/16 Multi-Channel Optional Power Meter ± 0.06 DB 850nm Wavelength
2/4/6/8/12/16 Multi-Channel Optional Power Meter

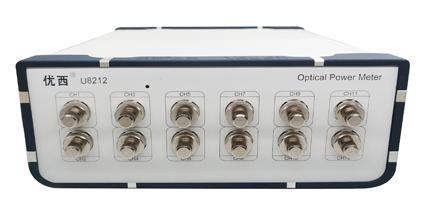

U8212/16 12/16 channel optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.
U8212/16 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. We provide low power, high power, Multi-channel optical power meter options.
| Model # | U8212 | U8216 | U8212B | U8216B |
| Number of Channels | 12 | 16 | 12 | 16 |
| Power Range | +10 ~ -65dBm | +25 ~ -50dBm | ||
| Wavelength Range | 850 ~ 1700 nm | |||
| Calibration Wavelength | 850/980//1310/1490/1550/1610 nm(or other wavelengths are optional) | |||
| Sampling period | 1ms (1KHz) | |||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | |||
Absolute Uncertainty (accuracy) at reference condition | ± 4% (1200 nm ~ 1610 nm) | |||
Relative Uncertainty (accuracy) at reference condition | ＜ 0.02 dB Typical | |||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | |||
| Return Loss | ＞ 40 dB | |||
| Operation Temperature | 0 ～ +40℃ | |||
| Storage Temperature | -30 ～ +80℃ | |||
| Recalibration Period | 2 years | |||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
| Weight | 2.0 kg | |||
Note: Multiple configurations exist for U82xx: xx indicates the number of channels. Optical interfaces can be FC, LC, or SC
|
|
