10G Four channel bit-error tester BERT Support 10Gbps multiple rates

U9210B serial bit error tester is a universal bit error rate tester designed for high-speed digital communication components and system testing.

The serial bit error tester provides the function of code type occurrence and bit error detection with the highest rate of 11.3Gbps at extremely high cost performance. The analyzer provides four differential electrical ports (up to 11.3Gbps) for bit error testing.

U9210B has compact structure and small volume. Support for USB or Ethernet communication interfaces makes integration into automated test environments smoother.

The operating interface of U9210B serial bit error tester is suitable for Windows-XP/WIN7/WIN8/WIN10 operating system, based on PC user operation and graphical display interface, it is very convenient for laboratory or production line working environment. The following three sets are used superimposed with 12 channels test interface:

U9210B serial bit error tester features

· 9.953Gbps to 11.3Gbps code generator and error detector

· Input sensitivity less than 50 mVpp

· Fast bit mode synchronization

· Intuitive user interface and Windows operating system

· Support remote control commands

Standard code selection:

PRBS7, PRBS9, PRBS15, PRBS23, PRBS31

Support for standards and rates

9.953Gbps, 10.3125Gbps, 10.519Gbps, 10.702Gbps, 11.096Gbps, 11.317Gbps

Communication/network management interface

The power supply requirements
The U9210B complies with overvoltage Level II regulations. The operating voltage is 100 ~ 240V AC voltage, the frequency range is 48 ~ 66Hz, the operating voltage is 115V, the maximum consumption current is 230mA; When the operating voltage is 230V, the maximum consumption current is 120mA.
USB port
The USB interface is a standard 4-core B-type interface, which can be connected to UC9210B and PC, and the instrument can be controlled by monitoring software.
USB connection cable
The length of the USB cable cannot exceed 5 m. Otherwise, only a third-party USB peripheral extender can be used. Generally, the maximum extension length can reach 50 m.

The weight of the

Less than 2 kg

The working principle of error meter

Optical communication is becoming the core power of communication technology due to its advantages of low transmission loss, large information capacity and fast transmission rate, and optical modules are being used more and more widely.With the acceleration of transmission rate, bit error will occur in high-speed optical communication system due to attenuation, dispersion and other problems, so it is very important to measure the bit error rate of optical module accurately and effectively. So, how does a bit error meter work?

Principle of error testing

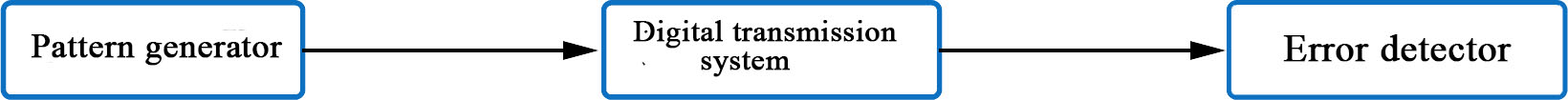

The object of error testing is generally the exponential word transmission system, which can be understood as the channel of digital information transmission. The basic block diagram of error testing structure is formed by connecting the code generator with the input end of the tested object and the output end of the tested object with the error detector.
