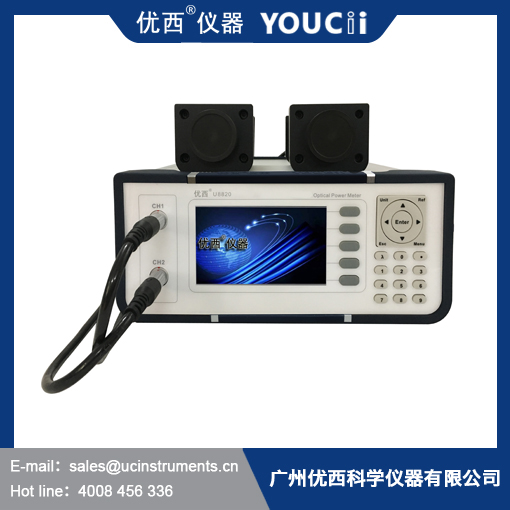

High Power PD External Optical Power Meter High Precision +25 ~ -65dBm
Optical power meter is the most basic measurement parameter in optical fiber communication system, and it is one of the most important parameters to evaluate the performance of optical terminal equipment and the transmission quality of optical fiber. It is specially used to measure absolute optical power or relative optical power loss through a section of optical fiber.
U8820+2*U88203 is widely used in communication trunk laying, equipment maintenance, scientific research and production. Superior performance, economical and practical.
The U8820+2*U88203 Optical power meter measuring system has the characteristics of high performance, small size, fast start-up and affordable price.
Others, YOUCii offers a choice of low power, high power, single channel and dual channel optical power meter probes, as well as up to 64 channel mainframe systems.
| Index | U8820 + 2xU88203 | ||
| Sensor Element | InGaAs | ||
| Power Range | +25 ~ -65dBm | ||
| Wavelength Range | 850 ~ 1700 nm | ||
Power sampling period(rate) | 100 us(10KHz) | ||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
Absolute Uncertainty (accuracy) at reference condition | ± 4% (1200 nm ~ 1610 nm) | ||
Relative Uncertainty (accuracy) at reference condition | ＜0.02 dB Typical | ||
| Linearity (power) | ≤± 0.05 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | ||
| Resolution | 0.001dB | ||
| Return Loss | ＞ 40 dB | ||
| Communication Interface | RS232 / USB / RJ45 | ||
| Operation Temperature | 0 ～ +40℃ | ||
| Storage Temperature | -30 ～ +80℃ | ||
| Recalibration Period | 2 Year | ||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | ||
| Weight | 4.0 kg | ||
|
|
