| Brand Name : | YOUCii |
| Model Number : | U9210C |
| Price : | negotiate a price |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A |
| Supply Ability : | 5pcs+per month |
| Delivery Time : | 21 work days |
| Certification : | CU,IOS |

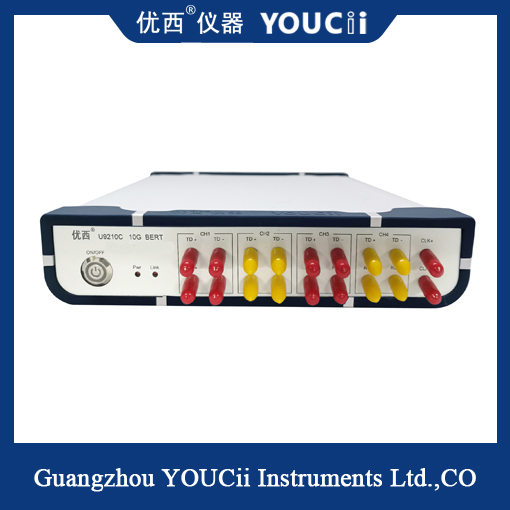

4 Channel 10G Full Rate Error Meter(0.622 To 11.7 Gbps)Bert
Measurement of error detector electrical eye map:
2.5Gbps
6.25Gbps
10.3125Gbps
U9210C 4-channel 10G full rate error meter technical specification:
| No. | parameter | minimum | typical | maximum | unit |
| 1 | Data rate | 0.622 | 0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7 | 11.7 | Gbps |
| 2 | Number of channels | 4 (4-channel electrical port, PG and ED supported) | |||
| 3 | Code type | PRBS7,PRBS9,PRBS15,PRBS23,PRBS31 | |||
| 4 | Rise and fall time (20% to 80%) | 18 | 23 | ps | |
| 5 | Pattern reversal | Supports signal reversal at the transmitting and receiving ends | |||
| 6 | Signal differential output amplitude | 200 | 600 | 1000 | mV |
| 7 | Data output jitter (RMS) | 1.5(10.3125G) | ps | ||
| 8 | Data input/output interface | Differential, AC coupling, 50 ohm impedance, SMA | |||
| 9 | Clock output | 100 | 156.25 | 156.25 | MHz |
| 10 | Data signal input sensitivity | 50 | mVpp | ||
| 11 | Data output eye graph crossing point (difference) | 49 | 50 | 52 | % |
| 12 | USB HID response time | 10 | ms | ||
| 13 | Operating temperature | 10 | 25 | 50 | °C |
| 14 | Operating voltage (AC) | 180 | 220 | 250 | V |
|
|
