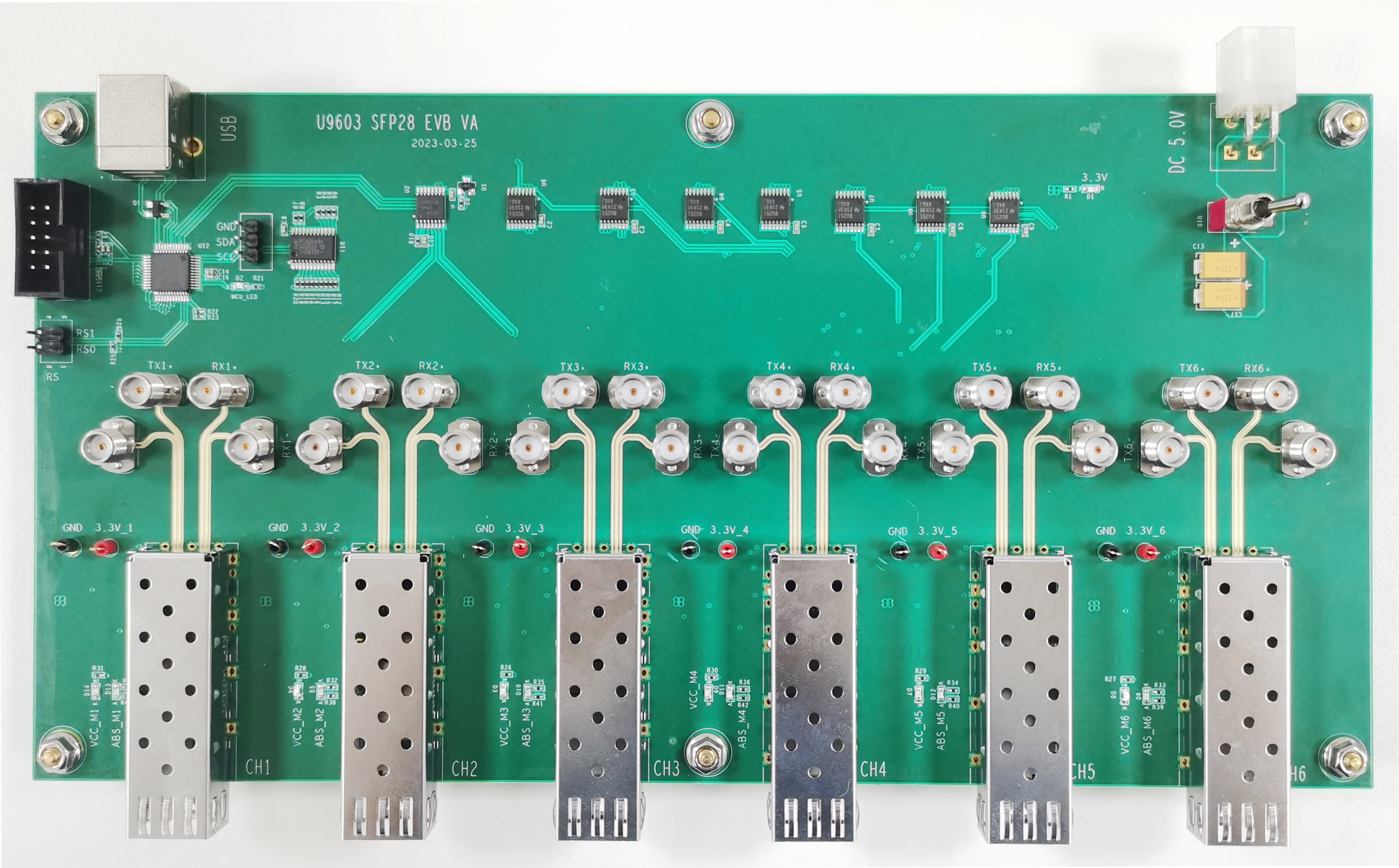

SFP28 25G Test Board 5G Module Light Source Monitoring Test Board
The product is dedicated to the active module of the SFP package, using error meter, attenuator and oscilloscope and other devices to evaluate the transmission performance indicators of the active module (such as eye image related indicators), receive performance indicators (such as sensitivity and other indicators), read and write module EEPROM information.
1, SFP package interface, suitable for conventional SFP, SFP+, SFP28, SFP56 and other optical modules.
2, support rate range: 1.25G~56Gbps
3, TX,RX electrical interface type: 40GHz 2.92mm female;
4, support current real-time monitoring and overcurrent protection.
5, Support the power supply voltage pull test, the voltage range is from 2.8 to 4.0V adjustable, to meet the module pull the minimum 3.0V and maximum 3.6V voltage pressure test, as well as voltage real-time monitoring, the default 3.3V output, according to the current module real-time adjustment of the output voltage, to ensure that the power supply voltage under different loads is stable within the range of 10mV change.
6, support industrial temperature environment application.
| NO. | Index | Maximum value | Minimum value | unit |
| 1 | Data rate | 56 | 1.25 | Gbps |
| 2 | Adjustable output supply voltage | 4 | 2.8 | V |
| 3 | Accuracy of tension voltage regulation | 5 | mV | |
| 4 | Monitoring voltage accuracy | 5 | mV | |
| 5 | Monitoring current | 1000 | 0 | mA |
| 6 | Monitoring current accuracy | 0.1 | mA | |
| 7 | I2C rate | 400 | 100 | KHz |
| 8 | Power supply voltage (external DC power input voltage) | 5.5 | 4 | V |
| 9 | Operating temperature | 85 | -40 | °C |
| 10 | Communication mode | USB HID,No drive. | ||
| 11 | TX,RX Electrical interface type | 40GHz 2.92mm female | ||
| 12 | Input/output level type | CML | ||
