| Brand Name : | YOUCii |
| Model Number : | U8202M |
| Certification : | CU,IOS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time : | 20 work days |
| Price : | negotiate a price |
| Supply Ability : | 20pcs+per month |
Optical power meter is a reliable, accurate and user-friendly instrument for measuring optical power and return loss in fiber optic networks. The instrument is powered by an AC adapter and data can be connected via a DC line.

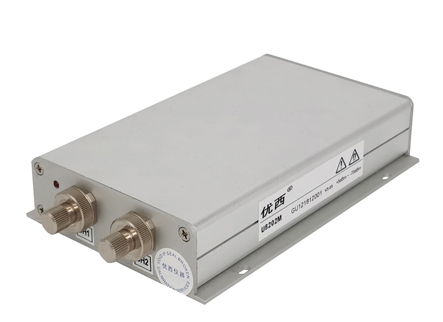

U8202M Double channel Mini optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.
U8202M Mini optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter options.
| Parameter | Value |
|---|---|
Number of Channels | 2 |
Power Range | +10 ~ -65dBm |
Calibration Wavelength | 850/980/1310/1490/1550/1610 nm |
Application Fiber Type | Standard SM and MM up to 62.5 um core size |
Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) |
Return Loss | ＞ 40 dB |
| Power Supply | DC5V3A, with 100~240V AC power adapter |
Storage Temperature | -30 ～ +80℃ |
|
|
