    Desktop Tunable Laser Source High Stability 1525~1568nm

    Desktop Tunable Laser Source High stability 1525~1568nm

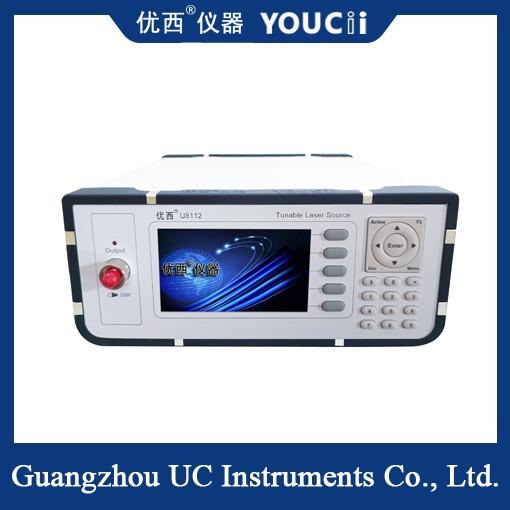

    The U8112 Desktop Tunable Lasers offer superior performance for the testing of DWDM components, AWG & PLC components, optical amplifiers EDFA, DWDM system and other general purpose fiber optic test and measurement applications. It has a wavelength high accuracy, high power output, small dimensions, fast startup, and is an affordable tunable laser source system. The system comes with O band,C band, L band, or C + L band options.



    Specification

    Model #U8112
    Band OptionOCLCL
    Wavelength Tuning range (nm)1260~13601525~15681568~16101525~1610
    Output Power≥ 7dBm≥ 13dBm≥ 10dBm≥ 7dBm
    Power Adjust Range (Option)25 dB
    Wavelength resolution1.0 pm
    Absolute wavelength accuracy± 10 pm, typ. < 5 pm
    Relative wavelength accuracy±5 pm, typ. ± 2 pm
    Wavelength repeatability± 2 pm, typ. ±1 pm
    Wavelength stability≤± 2 pm (24 hrs at constant temperature)
    Tuning speed≤ 2 ms per step
    Power stability≤ ± 0.01dB, (15min).
    Power repeatability± 0.05dB
    Power linearity± 0.3dB
    Power flatness versus wavelength0.3dB typ. 0.5dB max.
    Side-mode Suppression ratio≥ 35dB≥ 45dB
    Relative intensity noise< -135dB
    PowerAC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max.
    Storage temperature−40°C to +80°C
    Operating temperature0°C to +45°C
    Dimensions245 mm W, 105 mm H, 320 mm D
    Weight2.0 kg



    Other users will ask the following questions:


    1.Why does light have a speed limit?

    Nothing can travel faster than 300,000 kilometers per second (186,000 miles per second). Only massless particles, including photons, which make up light, can travel at that speed. It's impossible to accelerate any material object up to the speed of light because it would take an infinite amount of energy to do so.

    2.What are the 3 common light frequencies used in fiber optics?

    The three main wavelengths used for fiber optic transmission are 850, 1300, and 1550 nanometers. These wavelengths are used in fiber optics because they have the lowest attenuation of the fiber.
