Guangzhou UC Instruments., Co. Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | YOUCii |
| Model Number : | U8512C+2xU88201 |
| Price : | negotiate a price |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5 pcs+per month |
| Delivery Time : | 20 work days |
| Certification : | CU,IOS |

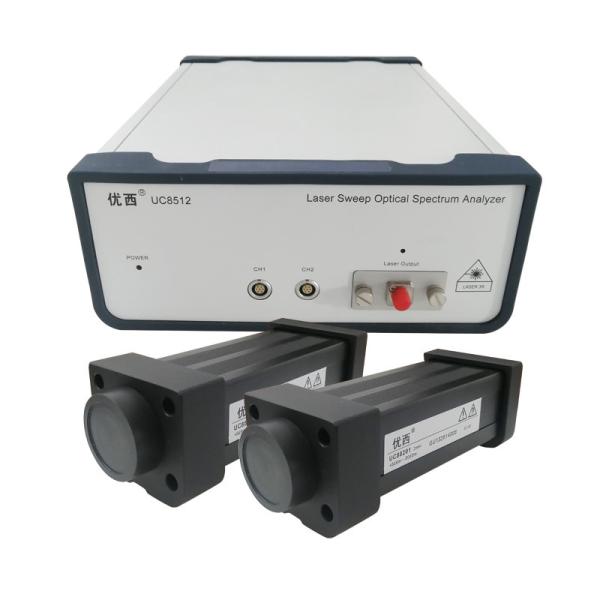

U8512C+2xU88201 Laser Scanning Spectrometer
Model # | U8512C+U88201 |
| Adjustable laser light source | |
Wavelength range | 1525.00 ~ 1568.00 nm |
Output Power | 13 dBm |
Wavelength resolution | 1.0 pm |
Absolute wavelength accuracy | ±10 pm, Typ. ±5 pm |
Relative wavelength accuracy | ± 5 pm, Typ. ±2 pm |
Wavelength repeatability | ± 3 pm, typ. ±1 pm |
Wavelength stability | ±5 pm (typ., 24 hrs at Constant Temperature) |
| Tuning speed | ≤ 2 ms per step |
Power stability | ±0.005dB (15Min) ±0.05 dB ( 24 hours) |
Power repeatability | ± 0.05 dB |
Power linearity | ± 0.3 dB |
| Power flatness | 0.3 dB; Typical values 0.05dB. |
| Side mode rejection rate | ≥ 40 dBm |
| Relative noise intensity | Typical values < -135 dB |
| Optical power meter | |
| Wavelength range | 850 nm to 1625 nm |
| Power measuring range | +5 dBm to -85 dBm |
| Precision of power | < ± 4% |
| Power repeatability | < 0.1 dB |
| Scanning function: equipped with DWDM/Isolator/GFF device scanning software | |
| Scanning mode | Fast adjustable laser spectral scanning |
| resolution ratio | 1 pm |
| precision | 5 pm |
| Power display | Peak power display |
| Central wavelength function | Central wavelength and 3dB bandwidth display |
| Reference function | Reference test |
| Power adapter power | AC 100 ~ 240 V , 48 - 66 Hz,100 VA max. |
| display | PC control interface |
| Optical output interface | FC/PC connector |
| Communication interface | USB / RS232 interface |
| Storage temperature | −40°C ~ +80°C |
| Operating temperature | 0°C ~ +45°C |
| Dimensions | 245 mm W, 105 mm H, 320 mm D |
| Weight | 3.0kg |
FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional
foreign trade sales team and an experienced technical support team.
We are supplier for Light source, optical power meter, optical
attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place
order.
|
|
