Guangzhou UC Instruments., Co. Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | YOUCii |
| Model Number : | U9720B |
| Price : | negotiate a price |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5 pcs+per month |
| Delivery Time : | 20 work days |
| Certification : | CU,IOS |

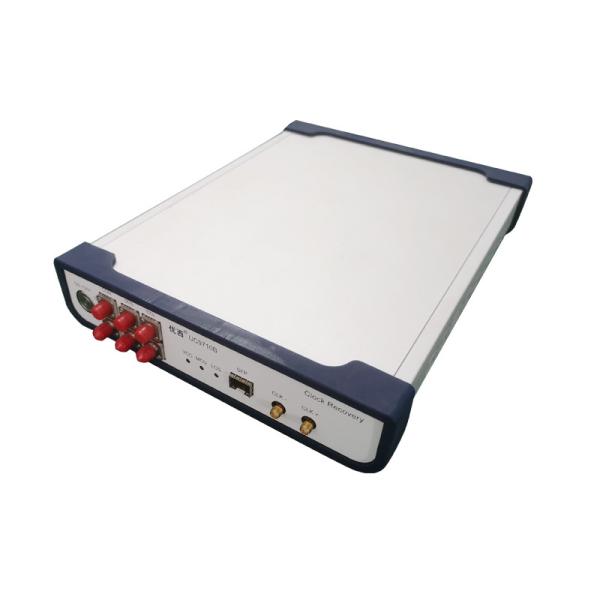

U9720B 32Gbaud PAM4 CDR
| No. | Specifications | Max. | Min. | Unit. |
| 1 | Data rate range | 32 | 25 | Gbps/Gbaud |
| 2 | Wavelength range(single mode) | 1650 | 1250 | nm |
| 3 | Optical input range | +5 | -15 | dBm |
| 4 | Clock Recovery Output Divider | 2 / 8 / 32 / 40 | ||
| 5 | Output electrical clock amplitude | 500(typical value) | mVpp | |
| 6 | CML clock differential output amplitude | 800 | 200 | mVpp |
| 7 | Clock output random jitter | 800 | 300 | fs |
| 8 | Clock frequency (take 28.1Gbps as an example) | 14.05 | 0.70 | GHz |
| 9 | Internal Loss of Signal Detect (LOS) | 128 (overload) | 5(sensitivity) | mV |
| 10 | Power supply voltage (external power supply input voltage) | 5.5 | 4 | V |
| 11 | Operating temperature | 70 | 10 | ℃ |
| 12 | Adaptable module types (support NRZ and PAM4 signals) | SFP28/56, SR, LR, BIDI | ||
U9720B CDR (Clock Recovery Module ) is mainly used to provide clock recovery signal in the test environment without triggering clock, so as to use the sampling oscilloscope to test the optical eye diagram of the device. The typical application is the testing of optical network equipment or the BOB product in PON application. Because the photometric device itself has no frequency division clock output, it is necessary to recover the clock signal to trigger the sampling oscilloscope when testing the optical eye diagram.
U9720B CDR has a FC optical interface adapter, which is suitable for optical signal access of conventional SFP28/56, SR, LR and BIDI modules. It supports NRZ and PAM4 signals. FC optical interface receives optical signals and converts them into electrical signals. CDR then abstracts and outputs the clock of electrical signals, and the clock signals are mainly used for the trigger signals of oscilloscopes.
FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional
foreign trade sales team and an experienced technical support team.
We are supplier for Light source, optical power meter, optical
attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place
order.
|
|
