    Handheld Optical Power Meter 850nm 1310nm 1490nm 1550nm 1625nm

    Ask Lasest Price
    Brand Name : YOUCII
    Model Number : UC8621
    Price : negotiate a price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
    Supply Ability : 100pcs+per month
    Delivery Time : 20 work days
    Certification : CU,IOS
    • Product Details
    • Company Profile

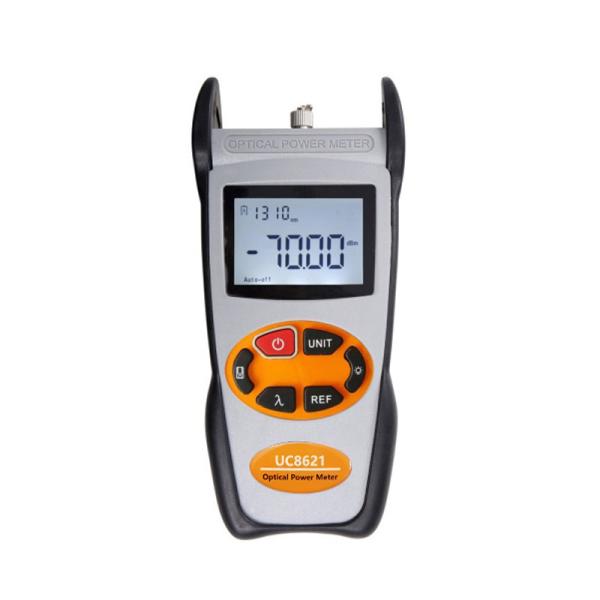

    Handheld Optical Power Meter 850nm 1310nm 1490nm 1550nm 1625nm

    850 /1300 /1310 /1490 /1550 /1625nm Handheld optical power meter

    U8621 full-function handheld optical power meter adopts advanced precision laser detection and processing technology, aiming at optical network installation, acceptance and maintenance design and development. As a comprehensive optical power meter, it supports single-mode/multi-mode test, large-size LCD display, moisture-proof/shock-proof design, AC/DC dual power supply, etc., making the product widely used in laboratory and field test. The simple function key design makes it easy for you to implement fast and high-precision testing, frequency and wavelength recognition, up to 1000 sets of test data storage capacity and convenient PC companion software upload function, making test data management more convenient, fast and accurate.


    Specifications

    Calibration Wavelength(nm)850/1300/1310/1490/1550/1625
    Detector typeInGaAs
    Measurement Range(dBm)Type A:-70~+6Type C:-50~+26
    Uncertainty (dB)±0.15(3.5%)
    Display resolution(dB)0.01
    Frequency ID(Hz)270,1K,2K
    Date Storage Capacity1000
    Communication PortUSB
    Standard ConnectorFC/PC or FC,SC interchangeable
    Alkaline battery3*AA,1.5V
    Power Adapter(V)8.4
    Battery Operating time (h)200 without backlight
    Operation Temperature(℃)-10~+60
    Storage Temperature(℃)-25~+70
    Dimension(mm)200*90*50
    Weight(g)285

    Remark: Battery operating time is based on the condition of the power off the backlight. If power on the backlight continuously,

    the operation time will be shorter.


    Standard configuration

    No.nameqty
    1Optical Power Meter1
    2User Manual1
    3USB cable1
    4CD1
    51.5V AA battery3
    6Cotton Swabs1
    7Carry Bag1

    • Functions and Features
    • Optic power test
    • Wave ID—Auto wavelength identification & switching
    • Frequency ID ---Auto frequency identification
    • 1000 records storage or download via USB cable
    • USB communication port for saved testing records download
    • Reference power level can be set up and stored
    • User self-calibrating function
    • Auto-off function
