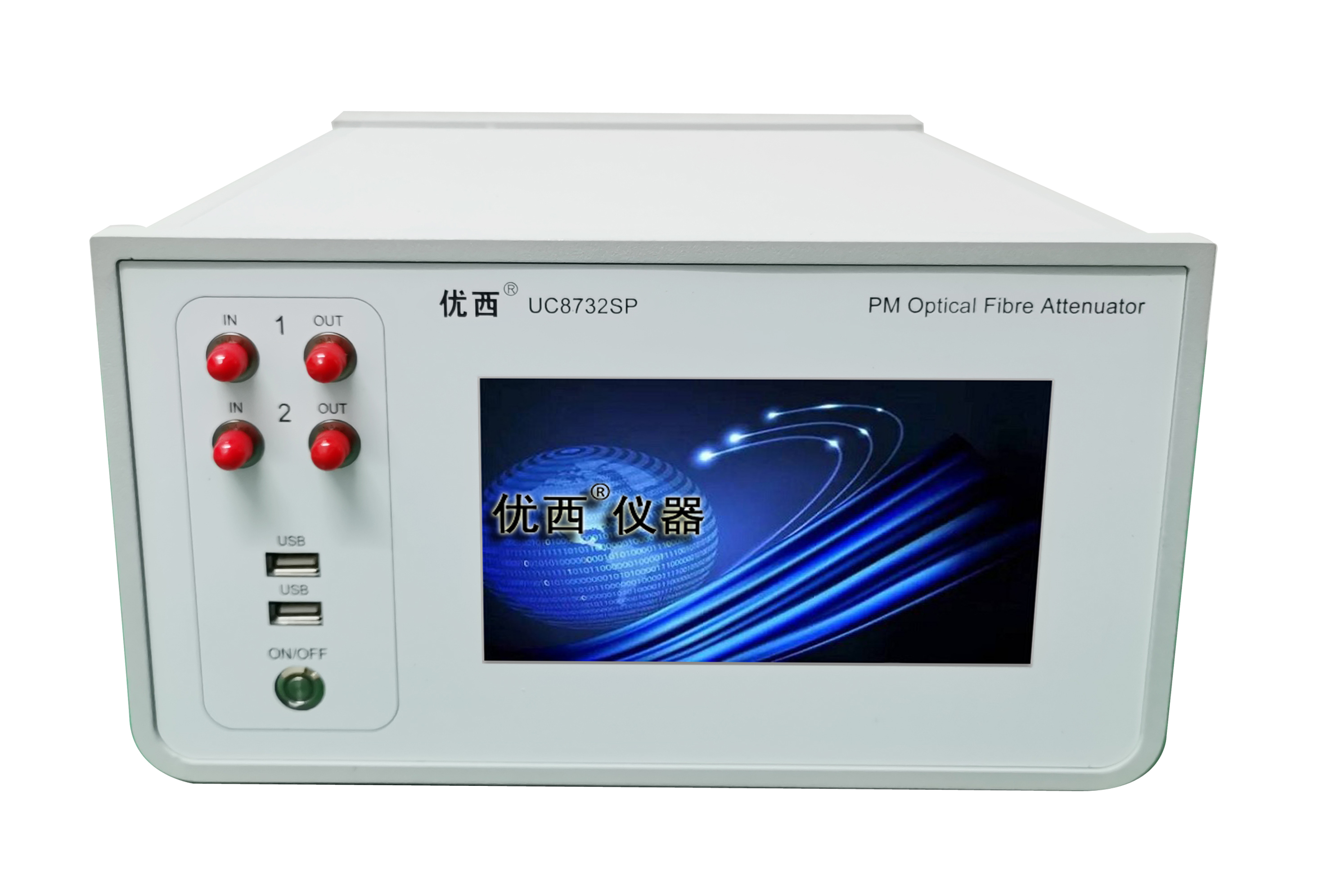

Dual channel polarization-preserving optical attenuator Attenuator Range 0~45 dB

Specification

Applications

Active optical module/device testing:

In the multi-channel error measurement of optical transceiver module, parallel data measurement is realized.

In the sensitivity measurement of optical receiving module, the parallel fast and accurate optical power input is provided.

100ms optical power control stabilization time, greatly improve the test efficiency.

Optical communication network integration test:

In the optical communication network integration, test the network transmission performance and network management function.

Features

Optical attenuation and optical power output can be set quickly and accurately, and the stabilization time of optical power control is less than 100 ms.

Multi-channel attenuator is set at the same time, multiple ports are measured at the same time, saving a lot of measurement time;

Built-in high precision optical power meter ensures the stability and accuracy of power monitoring;

Simple operation, intuitive graphical user interface, multi-channel data preview at the same time, test status at a glance;

Based on Windows system platform, easy to use and operation.

The role of optical attenuator:

1. Adjust the signal size in the circuit.

2, in the comparison method measurement circuit, it can be used to directly read the attenuation value of the measured network.

3, improve the impedance matching, if some circuits require a relatively stable load impedance, you can insert an attenuator between the circuit and the actual load impedance, can buffer the impedance change.

"To do import substitution, to create national brand" is the journey that Uc Instruments is brave to climb and the goal of continuous progress.

Guangzhou UC Instruments., Co. Ltd. was founded in March 2009 and has been recognized as a high-tech enterprise in Guangdong Province.

Guangzhou UC Instruments., Co. Ltd. is willing to join hands with chip manufacturers, device manufacturers, equipment manufacturers, communication operators and data centers in the optical communication industry, as well as teaching and research units in the industry, to create a brilliant industry. To provide industry users with "UC" independent brand measurement instrument products and services, and automated test system customization services.

We warmly invite customers to choose our products and services. We will try our best to do a good job in the spirit of craftsmanship in our products, with enthusiasm to do a good job in our services, and strive to become the majority of users in the field of product measurement and testing strong backing.

The full range of Youxi instrument products are:

8 series passive measuring equipment: light source series, optical power meter series, optical attenuator series, plug back loss meter series and optical polarization generator and optical switch series, etc.

9 series of active measuring equipment: BER series, optical oscilloscope series, clock recovery instrument series, LIV measuring system and 10G/100G/400G optical module test and evaluation board series.
