Guangzhou UC Instruments., Co. Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | UC |
| Model Number : | UC8201 |
| Price : | negotiate a price |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A |
| Supply Ability : | 25pcs+per month |
| Delivery Time : | 20 work days |

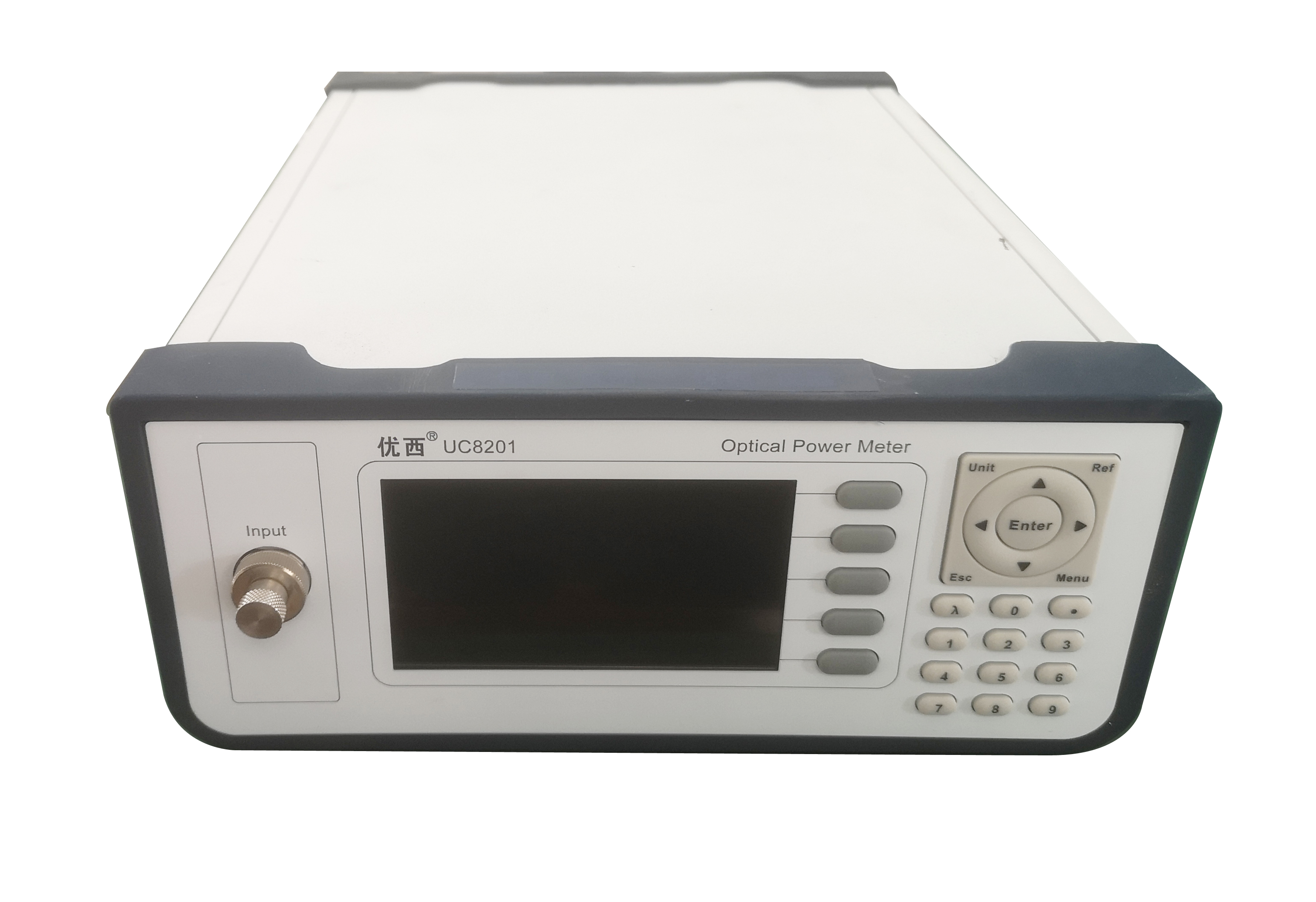

Single-Channel Optical Power Meter Display With Screen High Cost Performance
| Model # | UC8201 | |||
| Number of Channels | 1 | |||
| Power Range | +10 ~ -65dBm | +25 ~ -50dBm | ||
| Wavelength Range | 850 ~ 1700 nm | |||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm | |||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | |||
Absolute Uncertainty (accuracy) at reference condition | ± 4% (1200 nm ~ 1610 nm) | |||
Relative Uncertainty (accuracy) at reference condition | ＜ 0.02 dB Typical | |||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | |||
| Return Loss | ＞ 40 dB | |||
| Operation Temperature | 0 ～ +40℃ | |||
| Storage Temperature | -30 ～ +80℃ | |||
| Recalibration Period | 2 years | |||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
| Weight | 2.0 kg | |||
UC8201 CHANNEL OPTICAL POWER METER HAS EXCELLENT performance, economical and practical, widely applicable to fiber testing and measurement applications, is designed for large volume production lines.
The UC8201 optical power meter test system is characterized by high efficiency, small size, fast start-up speed, and economic benefits. It can provide low power, high power, single channel and double channel optical power meter options.
|
|
