Guangzhou UC Instruments., Co. Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | UC |
| Model Number : | UC8722 |
| Price : | negotiate a price |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 30pcs+per month |
| Delivery Time : | 10 work days |

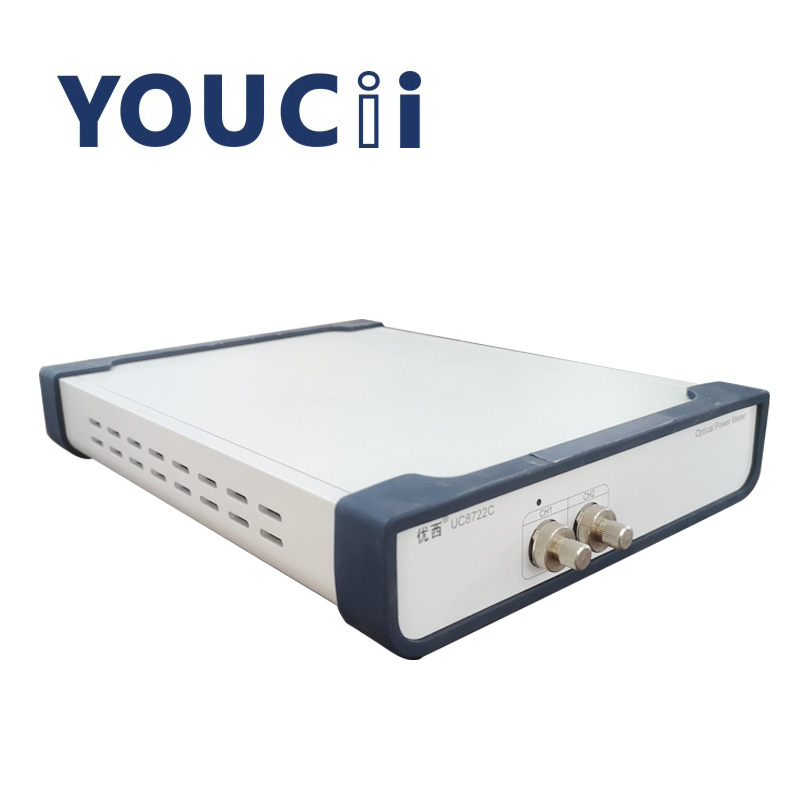

2CH Optical Power Meter with Calibration Wavelength 1510~1625 nm
| Model # | UC8722C | ||
| Sensor Element | InGaAs | ||
| Wavelength Range | 850 ~ 1700 nm | ||
| Wavelength | 850 / 980 / 1310 / 1490 / 1510~1625 nm | ||
| Power Range | +5 ~ -75dBm | ||
| Sampling period | 10 us (100KHz) | ||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
| Uncertainty (accuracy) | ± 4% (1200 nm ~ 1610 nm) | ||
| Relative Uncertainty (accuracy) | ＜ 0.02 dB Typical | ||
| Linearity (power) | ± 0.06 dB (1200 nm ~ 1610 nm, 0 ~ -60dBm) | ||
| Return Loss | ＞40 dB | ||
| Communication Interface | RS232, USB,RJ45 Control by PC | ||
| Operation Temperature | 0 ～ +40℃ | ||
| Storage Temperature | -30 ～ +80℃ | ||
| Recalibration Period | 2 years | ||
| Dimensions | 235 mm W, 55mm H, 320 mm D | ||
| Weight | 3.0 kg | ||
UC8722 dual-channel high-power optical power meter is mainly used for high precision wavelength division multiplexing DWDM components, optical waveguide grating array AWG components, plane optical waveguide PLC components, optical amplifier and other general optical measurement and application, superior performance, economical and practical.
UC8722 dual channel optical power meter measurement system has high performance, small size, fast start and affordable characteristics, Guangzhou UC can provide low power, high power, 4 channels and 8 channels for choice, can also provide customers with up to 64 channels combined test system.
|
|
