UC8523 Insert Return Loss Meter Optical Communication Testing Equipment

Specification

An overview of the
UC8523B DUAL LIGHT SOURCE PLUG LOSS INSTRUMENT IS A BENCHTOP, LIQUID CRYSTAL DISPLAY, SINGLE LIGHT SOURCE OUTLET (FC/APC ADAPTER), MEASURING POWER PLUG LOSS, back loss AND DIRECT measurement of OPTICAL POWER INSTRUMENT.
The instrument is SUITABLE for the test of optical communication components, installation inspection, especially the measurement of the connecting plug of light cable. The system can be built in any two fixed wavelength light sources.

User Interface Description

Front Panel of the host
The optical output interface is the FC/APC interface

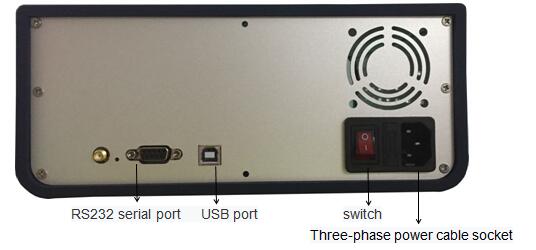

Rear Panel of the host

The power supply requirements
The UC8523B complies with overvoltage Level II regulations. The operating voltage is 100 ~ 240V AC voltage, the frequency range is 48 ~ 66Hz, the operating voltage is 115V, the maximum consumption current is 230mA; When the operating voltage is 230V, the maximum consumption current is 120mA.

USB port
The USB interface is a standard 4-core B-type interface, which can be connected to UC8523 and PC, and the instrument can be controlled by monitoring software.

USB connection cable
The length of the USB cable cannot exceed 5 m. Otherwise, only a third-party USB peripheral extender can be used. Generally, the maximum extension length can reach 50 m.
RS232 serial port
The serial port parameters of the instrument are set to a fixed value. The serial port parameter Settings of the computer must match the instrument parameter Settings.
