OTDR Multifunctional Tester Can Be Connected To A Variety Of Devices
Connect the IP camera to the IPC tester's LAN port, if the link indicator of the tester's LAN port is green and the data indicator flickers, it means the IP camera and the IPC tester are communicating.

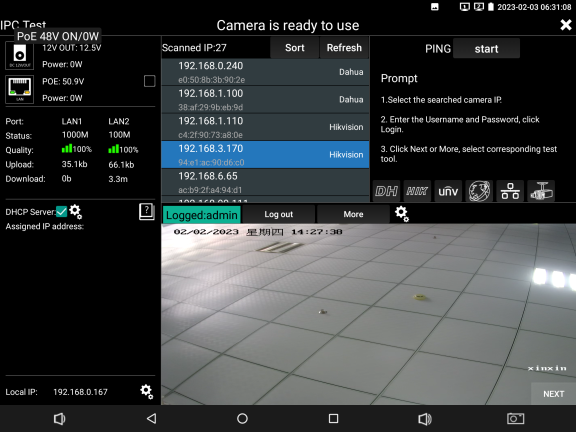

Enter “IPC Test pro” app, after scanned the IP, click camera IP address, the tester will auto log in and display the camera image.( This function will auto turn on PoE power)
The network setting can modify camera’s IP address. The tester’s chrome app can log in camera website to modify IP information.
Connect BNC cable to VIDEO IN port of tester, enter “AHD/CVI/TVI” apps will display the image. Connect the TVI camera's video output to the IP tester's "TVI IN" interface, the image will display on the tester.
Connect BNC cable to VIDEO IN and VIDEO OUT port, enter TV OUT interface, can test BNC cable’s continuity.
DVR or other device's HDMI out port connect to tester's HDMI in port, the meter will display input image.
| OTDR Technical Specifications | ||||||||
| Wavelength (nm) Optional * | 1310/1550 | 1610 | ||||||
| Dynamic range(dB)2 Optional* | 28/26 | 30/28 | 32/30 | 34/34 | 28 | 30 | 32 | 34 |
| Pulse width (ns) | 5,10,20,30,50,80,160,300,500,800,1000,2000,4000,6000,10000,20000 | |||||||
| Testing range | ≤150 Km | |||||||
| Event blind zone (m)3 | ≤2m | |||||||
| Attenuation blind zone (m)3 | ≤10m | |||||||
| Linearity (dB/dB) | ±0.05 dB/ dB | |||||||
| Loss threshold (dB) | 0.05 | |||||||
| Loss resolution ratio (dB) | 0.01 | |||||||
| Minimum distance resolution | 0.05 | |||||||
| Sampling point(K) | 32-128 | |||||||
| Distance uncertainty (m) | ±(1 m + 5×10-5× distance + sampling interval) | |||||||
| Distance scope (km) | 0.5,1,2,5,10,25,50,100,200 | |||||||
| Typical real-time refreshing duration | 1s | |||||||
| File format | SOR standard format/PDF/EXCEL | |||||||
| Measurement duration | 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable | |||||||
| Storage | FLASH (EMMC)8G + TF card | |||||||
| Interface type | SC-PC | |||||||
Remarks: 1. The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure, without considering the uncertainty caused by optical fiber refractivity. 2. Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the condition of 200km/20000ns/3min. 3. Measuring conditions of blind zone: reflection event is within 5Km, reflection strength is 45dB. Measured by the minimum pulse width. | ||||||||
|
|
