Single Channel Mini Optical Power Meter Has Excellent Performance And Small Size
The UC8201MINI optical power meter module can be used for
high-precision WD-division multiplexing DWDM components, optical
waveguide grating array AWG components, planar optical waveguide
PLC components, WSS, OPM, DPSK, optical amplifiers EDFA and other
general optical fiber optical measurement applications. Compared
with other models of power meters, UC8201MINI has the
characteristics of compact shape, especially suitable for assembly
into multi-channel optical power meter sampling systems.
Should
1.WDM, GFF, AWG, PLC device test
2. Insert loss, return loss measurement
3. Optical fiber sensor, optical fiber cable test
4.Polarization mode dispersion PMD and polarization dependent loss
PDL measurement
5.Optical fiber, communication R&D laboratory test
peculiarity
1.Fast startup and high measurement accuracy.
2.Wide dynamic power measurement range.
specification
| Model | U8201MINI |
| Sensor Element | InGaAs |
| Wavelength Range | 850 ~ 1700 nm |
| Calibration wavelength | 850/980/1310/1490/1550/1610 nm |
| Power Range (dBm) | +7 ~ -70 dBm |
Power sampling period(Rate) | 1 ms(1KHz) |
| Application Fiber Type | Standard SM and MM up to 62.5 um core size |
| optical Input Interface | FC/PC or FC/APC |
Absolute Uncertainty (accuracy) at reference condition | ± 4% (1200 nm ~ 1610 nm) |
Relative Uncertainty (accuracy) at reference condition | ＜ 0.02 dB Typical |
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 5~ -50dBm) |
| Return Loss | ＞ 40 dB |
| Communication Interface | RS232 |
| Calibration period | 2 years |
| Operation Temperature | 0 ~ +40℃ |
| Storage Temperature | -30 ~ +80℃ |
| Dimensions | 37 mm W, 25 mm H, 115 mm D |
| Weight | 0.5 kg |

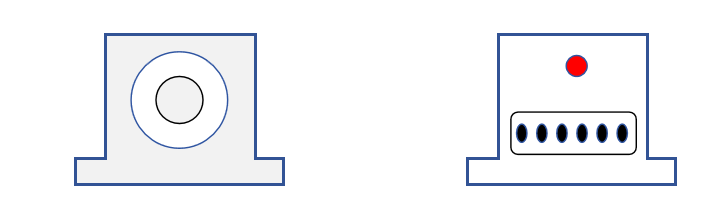

Module description
Front end Rear-end
|
|
