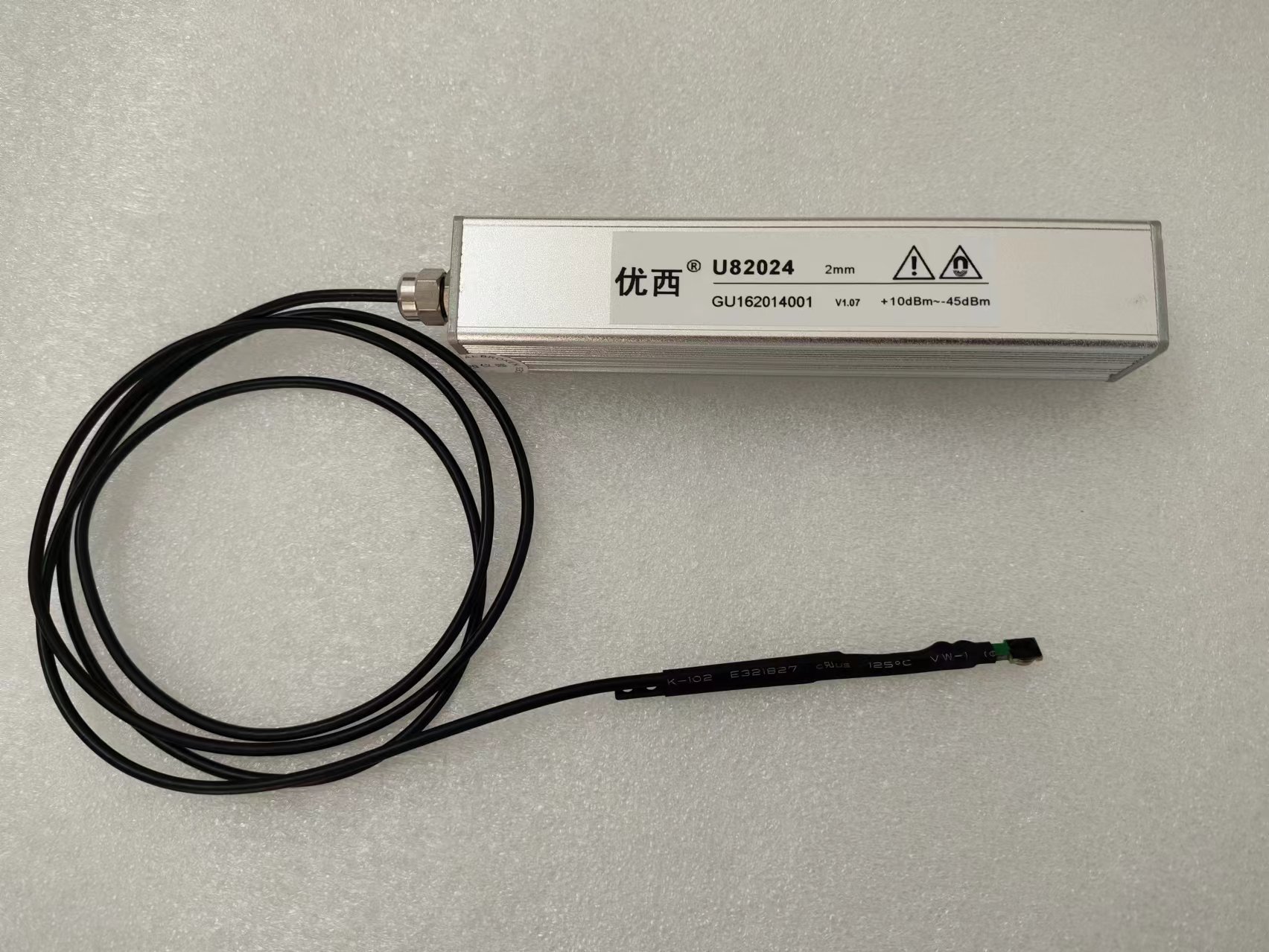

Optical Power Meter Host And External Ultra-Thin PD
The U82024 ultra-thin PD external optical power probe uses InGaAs as a detector type, the detection surface size reaches φ2mm, and the wavelength range covers 900 to 1700nm, which is a very wide wavelength range.
In addition, the probe has a segmented calibration function, including calibration wavelengths of 1310nm, 1550nm and 1650nm. In terms of power, it measures from +10dBm to -45dBm, while the power sampling period (rate) is 1ms (i.e., 1KHz).
| Model # | U82024 |
| Sensor Element | InGaAs |
| PD Size | φ2 mm |
| Wavelength Range | 900 ~ 1700 nm |
| Calibration wavelength | 1310 / 1550 / 1650nm Step calibration |
| Power Range | +10 ~ - 45 dBm |
Power sampling period(rate) | 1 ms(1KHz) |
| Application Fiber Type | Standard SM and MM up to 62.5 um core size |
Absolute Uncertainty (accuracy) at reference condition | ± 4% (1200 nm ~ 1650 nm) |
Relative Uncertainty (accuracy) at reference condition | ＜ 0.02 dB Typical |
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1650 nm, 0 ~ -40dBm) |
| Return Loss | ＞ 40 dB |
| Optical Input Interface | Bare fiber input |
| Probe front dimension | 5.0 mm W x 2.5 mm H x 20.0 mm D |
| Communication Interface | RS232 / USB |
| Operation Temperature | 0 ～ +40℃ |
| Storage Temperature | -30 ～ +80℃ |
| Recalibration Period | 2 Year |
| External PD end dimensions | 5 mm W, 2.5 mm H, 20 mm D |
| Weight | 0.5 kg |
|
|
