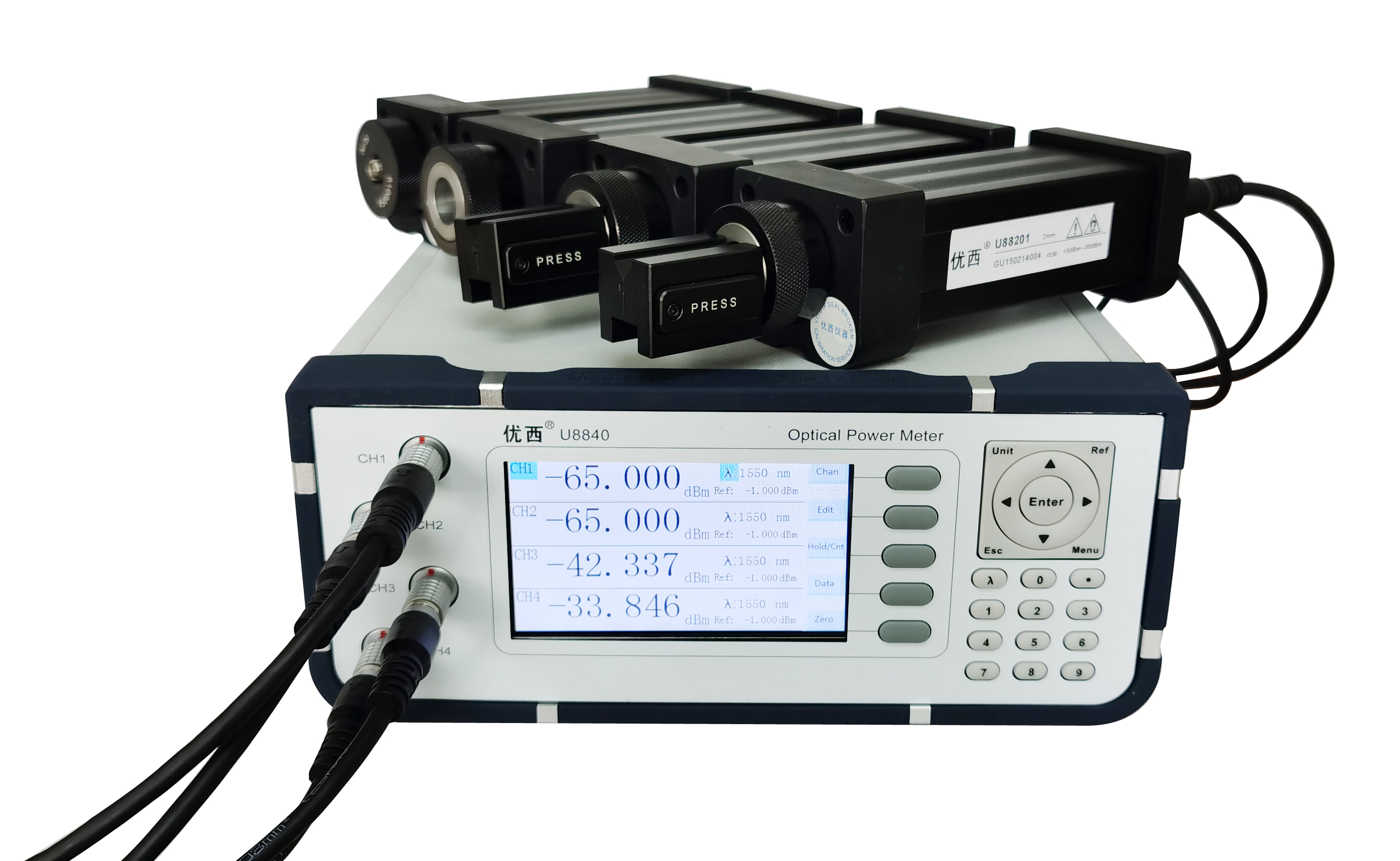

    High Precision Optical Power Meter Probe Liquid Crystal Display Power

    Ask Lasest Price
    Brand Name : YOUCii
    Model Number : U8840+4*U8820X
    Price : Negotiate price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20pcs / month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

    High Precision Optical Power Meter Probe Liquid Crystal Display Power

    High Precision Optical Power Meter Probe Liquid Crystal Display Power


    Main feature
    High-precision measurement: Four-channel probe external optical power meters usually use high-precision photodetectors and analog-to-digital converters, which can achieve accurate measurement of optical signal power.


    Fast response: The instrument has a fast response speed and can quickly capture the change of the optical signal, which is suitable for dynamic measurement scenarios.


    Multi-channel design: With four independent measurement channels, the optical signal power of four different optical paths can be measured at the same time, improving the measurement efficiency.


    Easy to operate: Usually equipped with an intuitive user interface and friendly operating software, making it easy for the user to set up the instrument and read the data.


    ModelU88201U88202U88203U88204
    Detector typeSingle channel InGaAs
    Operating wavelength range850 ~ 1700 nm
    Power measurement range+5 ~ -80 dBm+15 ~ -70 dBm+25 ~ -60 dBm+10 ~ -55 dBm
    Power sampling period≥0.01ms
    Application fiber typeStandard single mode and multi-mode fiber, fiber core diameter up to 62.5 um
    Absolute accuracy± 4% (1200 nm ~ 1610 nm)
    Relative accuracy< 0.02 dB Typical value
    Power linearity +/- 0.02 dB (1200 nm ~ 1610 nm, + 0~ -60 dBm)
    Return loss> 40 dB
    Calibration cycle2 years
    Optical input interfaceSupports optical fiber clamping or FC/PC connector insertionWritten test space reception
    Communication interfaceSeven core cable
    Operating temperature0 ~ +40℃
    Storage temperature-30 ~ +80℃
    Overall dimension155 mmL,60 mmW,52mm H
    Weight0.5 kg
    Application field
    Optical communication: In the optical fiber communication system, the four-channel probe external optical power meter can be used to measure the signal strength of each node, help regulate the transmission and reception of optical signals, and ensure the stability and reliability of the communication system.
    Optical fiber sensing: In the field of optical fiber sensing, the instrument can be used to measure parameters such as optical fiber connectors, optical fiber attenuation, and for applications such as temperature sensors, pressure sensors and strain sensors, by measuring the bending degree and bending direction of the optical fiber to reflect the change of the measured object.
